Measure

CAD Exchanger Lab has several options for measuring:

1. angles between vertexes or surfaces;
2. distances;

3. radiuses;

4. diameters.

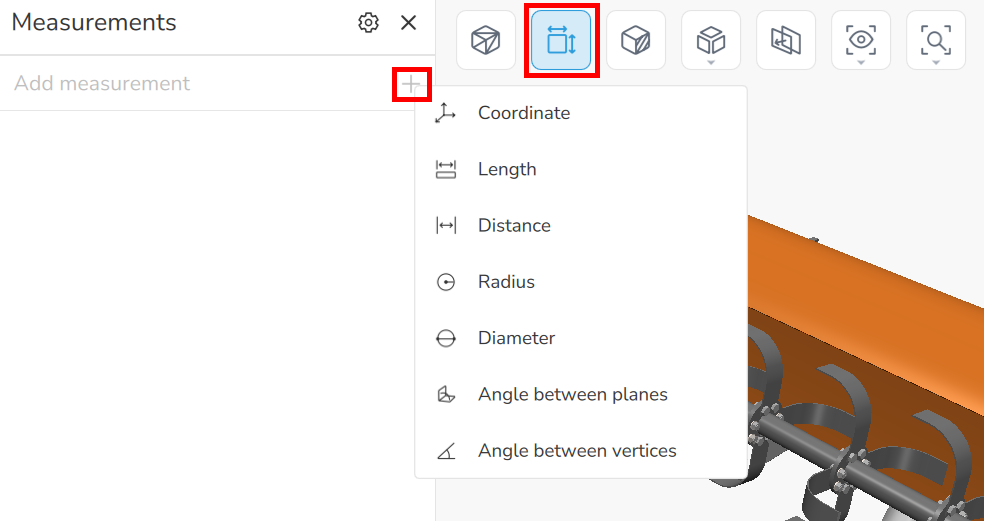

Click the Measure icon, Add measurement, pick the measurement type and measure the object or objects.

Note: Measurement tool only works with B-Rep models.

​
