Sectioning

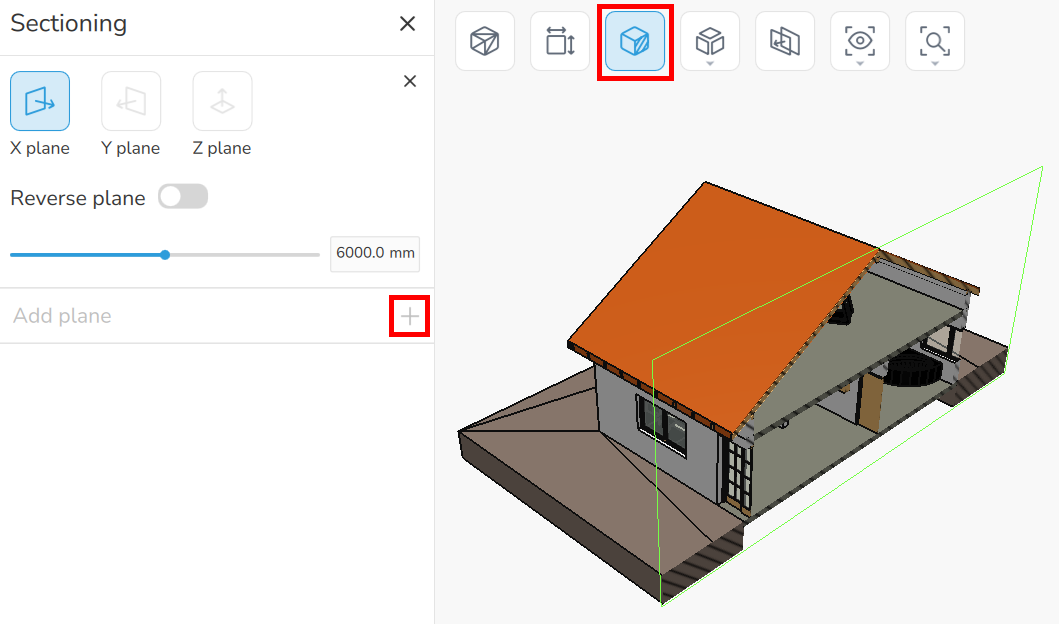

CAD Exchanger Lab allows sectioning with X, Y and Z planes. Click the Sectioning button at the top, then Add plane in the left panel. There can be up to 3 different planes simultaneously.
