View options

View options

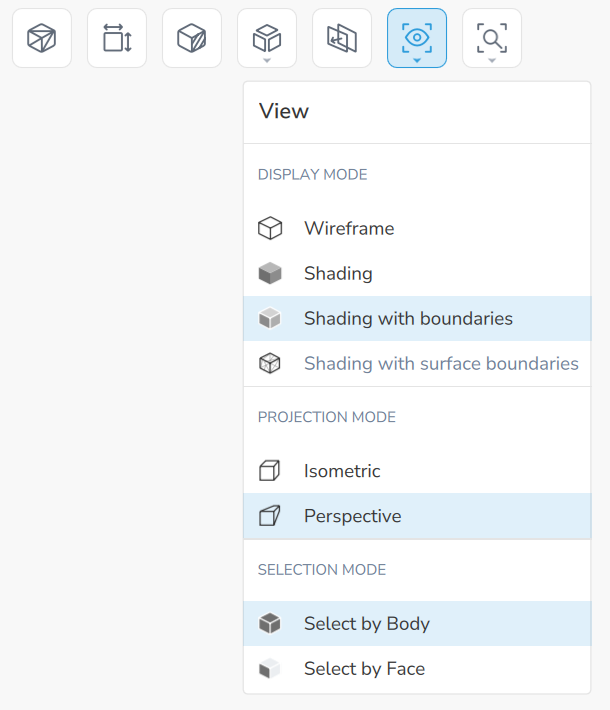

Under title Display mode, you can choose wireframe, shading, or shading with boundaries. Under Projection mode there are perspective or isometric view options. Selection mode allows selecting one face of the object or its whole body.
